Mobile cantilever gantry cranes are indispensable tools in industries requiring efficient material handling in confined or open workspaces. These cranes offer an ideal blend of lifting power and mobility, with their cantilevered design providing extended outreach and their mobile chassis enabling operational flexibility. However, ensuring effective steering and maintaining stability are critical challenges in their design and usage. This article explores the steering mechanisms and stability considerations essential for the safe and efficient operation of mobile cantilever gantry cranes.

A mobile gantry crane for sale combines the advantages of a cantilever structure with the maneuverability of a mobile gantry crane. Unlike standard gantry cranes that span the load completely, cantilever gantry cranes feature extended arms (cantilevers) that project beyond the supporting legs, allowing the crane to lift and position loads outside its wheelbase or rail path.

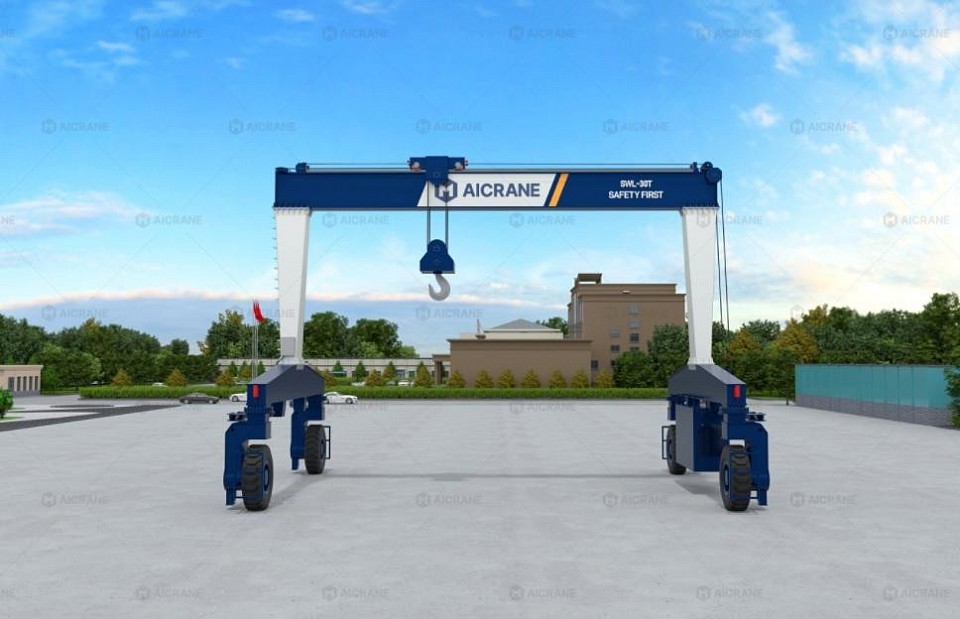

The "mobile" aspect refers to the crane’s capability to move across flat surfaces, often on rubber tires or rails. This makes it especially useful in logistics yards, manufacturing sites, shipbuilding zones, and areas where flexible load placement and outreach are required.

Steering Systems in Mobile Cantilever Gantry Cranes

1. Types of Steering Modes

A mobile cantilever gantry crane can be equipped with several steering options to improve maneuverability:

Front-wheel steering: Only the front wheels turn, similar to most road vehicles. It’s simple but limited in tight spaces.

Rear-wheel steering: The rear wheels turn to change the direction of movement. It enhances load visibility during transport.

Four-wheel steering: Both front and rear wheels steer simultaneously, reducing the turning radius and improving precision.

All-wheel crab steering: All wheels turn in the same direction, allowing the crane to move sideways - a critical feature for sideloading in narrow areas.

Pivot (carousel) steering: The crane can rotate 360° around its center, ideal for operations in confined workspaces.

Each steering type is selected based on project-specific needs - yard size, load weights, path constraints, and control preferences.

2. Steering Control Mechanisms

Modern mobile cantilever gantry cranes are usually fitted with advanced steering control systems, which include:

Joystick controls or remote steering systems: Operators can manipulate crane direction smoothly with proportional control.

Programmable Logic Controllers (PLCs): These offer automated steering responses, especially in repetitive tasks.

Steering sensors and feedback loops: Real-time feedback ensures wheel alignment and corrects deviations automatically.

Integrating these control features enhances accuracy and reduces operator workload, especially during complex maneuvers.

Stability Considerations for Mobile Cantilever Gantry Cranes

The cantilevered design inherently introduces stability challenges, especially when lifting loads that extend beyond the supporting structure. Here are the key stability factors to be considered.

1. Load Position Relative to Center of Gravity

A primary stability challenge comes from the shifting center of gravity when a load is lifted on one side of the cantilever arm. The crane must be designed to counteract tipping risks through:

Counterweights: These are positioned opposite the cantilever to balance the structure.

Wide wheelbase or outriggers: Increasing the base width can improve stability and reduce tipping moments.

Real-time load monitoring systems: Sensors that detect load sway or imbalance can alert operators and halt unsafe operations.

2. Ground Conditions and Surface Requirements

Unlike rail-mounted cranes, mobile rubber tired gantry cranes often operate on paved surfaces, which introduces variations in terrain flatness and load distribution. Key requirements include:

Smooth and level surfaces: Irregularities or inclines can destabilize the crane during movement or lifting.

Load distribution calculations: Heavy loads require reinforced flooring to prevent crane wheel sinking or uneven weight transfer.

Operators should always inspect operating surfaces and ensure they meet the specifications defined by the crane manufacturer.

3. Wind Load and Environmental Forces

Since cantilever arms extend beyond the base support, the crane can behave like a lever when subjected to wind or seismic forces. Measures to counteract these effects include:

Wind sensors: These monitor environmental conditions and can trigger alarms or shut down the system in high-wind situations.

Stabilizing mechanisms: Hydraulic outriggers or anchoring systems can be deployed during operations to improve structural rigidity.

Load sway control: Active anti-sway systems reduce the pendulum effect during lifting and traveling.

In coastal or offshore environments, corrosion-resistant materials and coatings are also critical for long-term stability.

4. Travel Speed and Load Sway

Faster travel speeds can induce load sway, especially with cantilevered loads. To address this:

Speed regulation systems can adjust movement based on the load weight.

Acceleration/deceleration ramps should be smooth to avoid abrupt inertia shifts.

Anti-sway mechanisms, such as pendulum dampers or active control algorithms, can significantly improve operational safety.

Safety Technologies and Innovations

To enhance both steering and stability, manufacturers are increasingly integrating smart technologies into mobile cantilever gantry cranes:

Load moment indicators (LMIs): Continuously calculate the moment caused by load position and alert when safe limits are exceeded.

Automatic steering alignment systems: Ensure that wheels return to a neutral position after maneuvers, reducing wear and improving safety.

Obstacle detection and collision avoidance: Cameras, ultrasonic sensors, and LiDAR systems help prevent accidents in busy environments.

Telematics and diagnostics: Real-time performance monitoring enables predictive maintenance and operational optimization.

Best Practices for Operators

Operators play a vital role in ensuring the stability and proper steering of the crane. Best practices include:

Pre-operation inspections: Check tire pressure, steering systems, sensors, and surface conditions.

Adhere to load charts: Always reference manufacturer limits, especially when operating at the cantilever arm’s outer limits.

Slow and steady movement: Avoid sudden starts/stops that might destabilize the load.

Use remote control in tight spaces: It offers better visibility and allows safe distancing.

Avoid side loading: Lifting loads that are not vertically aligned with the hoist can cause dangerous torsion forces.

Proper training and certification are essential to ensure operators understand the unique challenges of cantilevered mobile gantry cranes.

Conclusion

Mobile cantilever gantry cranes provide unmatched flexibility and reach in material handling applications. However, their safe and efficient operation depends heavily on advanced steering mechanisms and carefully considered stability systems. From steering mode selection and ground condition assessment to real-time stability monitoring and anti-sway control, every design and operational decision must aim to reduce risks and maximize performance.

As industries move toward automation and smart lifting solutions, the integration of intelligent steering and stabilization technologies will further elevate the usability of mobile cantilever gantry cranes. Companies that invest in high-quality equipment and prioritize operator training will not only boost productivity but also ensure a safer work environment.
