In the world of industrial lifting and heavy material handling, overhead cranes and gantry cranes stand out as two of the most commonly used crane types. While they share similar lifting functions, their structure, use cases, and operational flexibility differ significantly. Understanding these differences is essential for making informed purchasing and installation decisions.

This article provides in-depth insight into both overhead and gantry cranes, explaining their design, advantages, disadvantages, typical applications, and offering guidance on how to choose the right crane for your operation.

Understanding Overhead Cranes

An overhead crane, also referred to as a bridge crane, is a lifting device where the crane bridge travels along elevated runway beams fixed on either side of a building’s structure. The hoist and trolley move horizontally across the bridge, allowing the operator to lift and position heavy loads within a defined work area.

There are two main types of overhead cranes:

Single girder overhead cranes, which use one main beam and are suitable for lighter loads and shorter spans.

Double girder overhead cranes, which feature two main beams, offering higher lifting capacities and longer spans.

These cranes are typically installed indoors and become an integrated part of the facility's infrastructure, ideal for permanent and high-frequency lifting needs.

Understanding Gantry Cranes

Unlike overhead cranes, gantry cranes are freestanding structures supported by legs that run on ground-level rails or wheels. They perform similar lifting functions, but do not require runway beams mounted on the building. This makes them highly versatile and cost-effective, especially for outdoor applications or sites where a fixed overhead structure isn’t feasible.

Gantry cranes come in various configurations, including:

Full gantry cranes with two legs traveling on floor rails.

Semi-gantry cranes with one leg on a floor rail and the other supported by the building.

Mobile gantry cranes that are equipped with wheels for easy relocation.

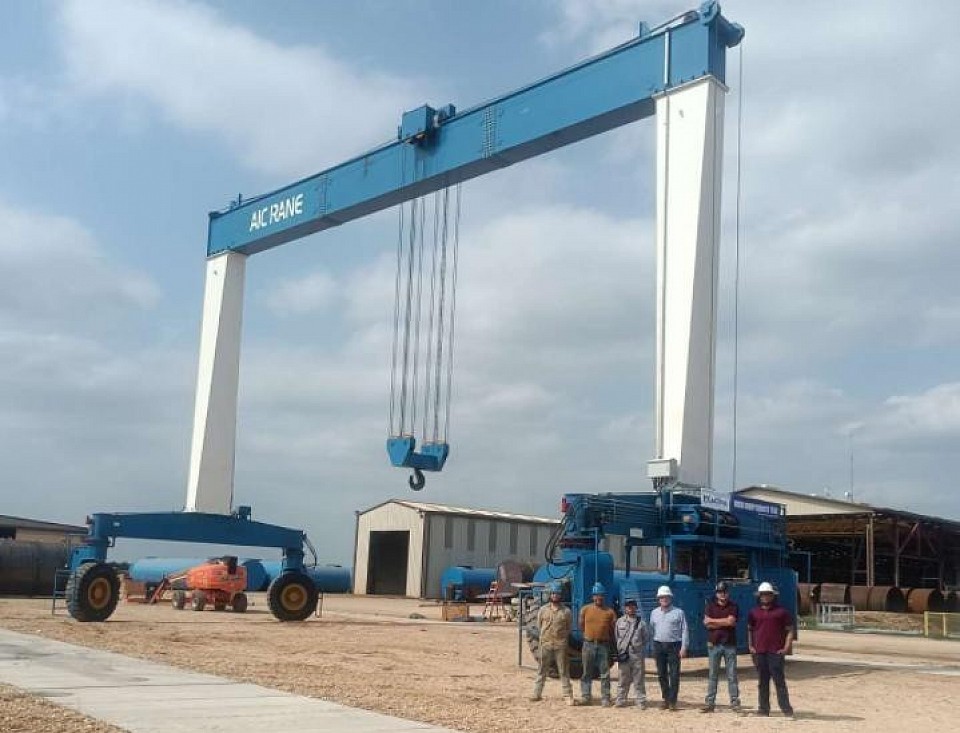

Rubber tyred gantry (RTG) cranes, commonly used in container yards.

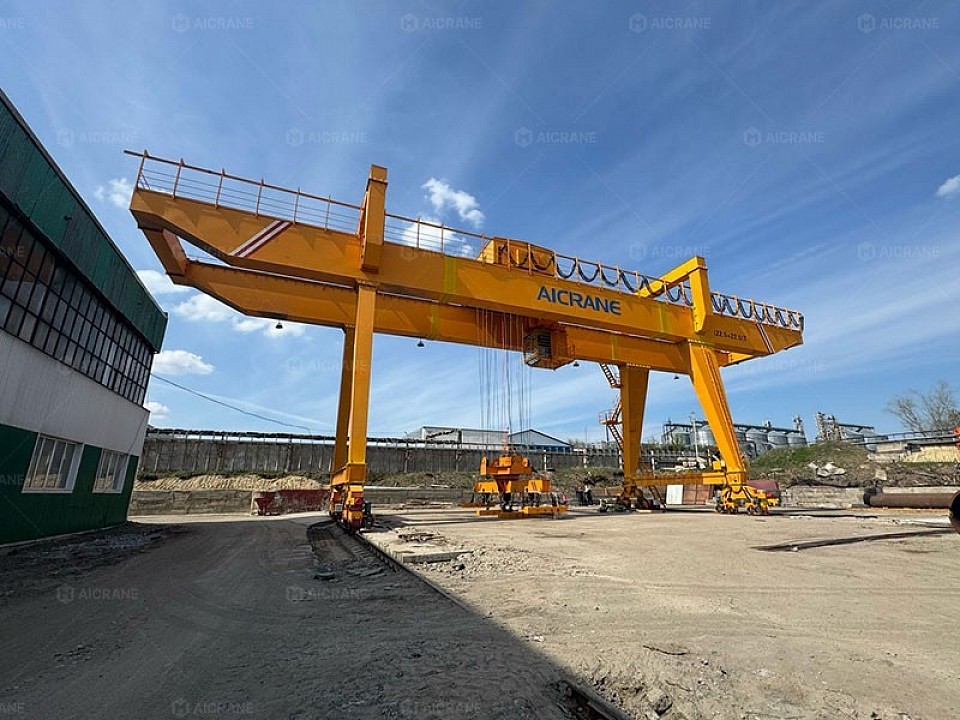

Rail mounted gantry (RMG) cranes, widely used in intermodal terminals and precast concrete plants.

These cranes can be deployed both indoors and outdoors, depending on the specific layout and material handling requirements.

Key Differences Between Overhead and Gantry Cranes

The most significant difference lies in their support structure. Overhead cranes rely on existing building columns and elevated runways, while gantry cranes are self-supporting and move along the floor. This makes overhead cranes more space-efficient in terms of ground clearance, but also more demanding in terms of installation, requiring strong structural foundations.

Gantry cranes, on the other hand, are often chosen for their mobility and flexibility, especially in open yards, construction sites, and shipyards where building supports may not be available.

Overhead cranes are typically permanent fixtures, designed for long-term, high-volume operations. Gantry cranes can be mobile and repositioned as needed, making them suitable for changing work environments or project-based usage.

Common Applications

Overhead cranes are widely used in manufacturing facilities, assembly lines, steel mills, and power plants. In these settings, they handle tasks such as moving large components, loading heavy parts onto machines, or transporting raw materials between workstations.

Gantry cranes are more common in outdoor and heavy-duty environments. They are indispensable in industries such as shipbuilding, construction, container handling, and concrete precast manufacturing. For instance, RTG cranes are used in container terminals to stack and move shipping containers, while heavy-duty gantry cranes are often used to lift precast concrete beams or steel structures.

Advantages and Disadvantages

Overhead Cranes:

Advantages:

Efficient use of vertical space.

Ideal for permanent, high-frequency lifting operations.

Offers higher lifting precision and control.

Lower exposure to weather and environmental factors when installed indoors.

Disadvantages:

Requires a strong building structure for support.

Higher upfront installation costs.

Limited flexibility after installation.

Gantry Cranes:

Advantages:

No building support needed - ideal for temporary or outdoor use.

Highly mobile (especially rubber-tyred or wheeled types).

Easy to relocate or expand.

Lower cost when no structural modification is required.

Disadvantages:

Takes up floor space, which may be a constraint in tight environments.

Exposed to weather if used outdoors.

May have limitations in lifting speed or precision depending on design.

How to Choose the Right Crane for Your Operation

When choosing between an overhead crane and a gantry crane, consider the following factors:

1. Installation Environment

If you are working within a building that can support a crane structure, and your lifting needs are consistent and centralized, an overhead crane is likely the better choice. However, if you're working in an open yard or your operations are temporary or project-based, a gantry crane will offer greater flexibility.

2. Load Capacity and Span

For very heavy or large loads, double girder overhead cranes offer superior lifting performance. That said, heavy-duty gantry cranes can also handle high capacities, especially when configured correctly. Carefully consider your load weight, size, and movement distance.

3. Budget Constraints

Overhead cranes often require building reinforcement and complex installation, which can increase costs. Gantry cranes, especially mobile or semi-gantry versions, can be more cost-effective, particularly when no existing structure is available.

4. Mobility Requirements

If your equipment or materials need to be lifted in multiple locations across a wide area, consider mobile gantry cranes. For stationary processes with repetitive lifting tasks, overhead cranes are more efficient.

5. Duty Cycle and Operating Frequency

Operations that involve continuous lifting and high-speed movements benefit from overhead cranes with high-duty ratings. In contrast, if your lifting tasks are less frequent or vary in location, gantry cranes provide more flexibility.

Technological Developments in Crane Systems

Both overhead and gantry cranes have seen significant advancements in recent years. Many now feature wireless remote controls for safer operation, anti-sway systems for better load stability, and smart monitoring systems to detect overloads or mechanical issues.

Integration with automation and digital monitoring systems allows operators to collect data on usage patterns, perform predictive maintenance, and improve operational safety. These innovations are making cranes smarter, safer, and more efficient than ever before.

Conclusion

Overhead cranes and gantry cranes each offer unique benefits suited to different industrial environments. Overhead cranes are ideal for permanent indoor installations requiring high precision and lifting efficiency. Gantry cranes shine in outdoor, heavy-duty, and mobile applications.

Selecting the right crane involves a careful analysis of your working environment, load requirements, installation capabilities, and budget. With proper selection and maintenance, either crane type can significantly enhance productivity, safety, and operational efficiency in your facility.

Whether you're handling shipping containers, precast components, or machinery parts, understanding the strengths and limitations of each crane type is the first step to making a smart investment in your lifting operations.
